SBC186/450


SKU: INT-SBC186/450



Model: SBC186/450

Manufactured by: Intel Corporation

Multibus II Serial Communications Board



  • 80C186 CPU operating at 12.5MHz

  • Two 32-pin EPROM sockets

  • Twelve 82510 Asynchronous Serial Controllers Providing twelve serial I/O RS232C interfaces configured as DTE

  • 512 Kbytes of DRAM



Automatic self-check diagnostics on power-up and on command through Built-in Self Test (BIST) with front panel, diagnostic LED

A 16-bit address and 16-bit data interface to the PSB interface, allowing PSB I/O accesses

Interconnect space support for identification of board type, board configuration, and diagnostics handshake and status

Message space support for up to 256 distinct interrupt sources and 256 distinct interrupt destinations for solicited messages

Eurocard form factor (8.7 by 9.2 inches) with a 96-pin DIN connector on the PSB interface

Alternate Part Number: SBC186450

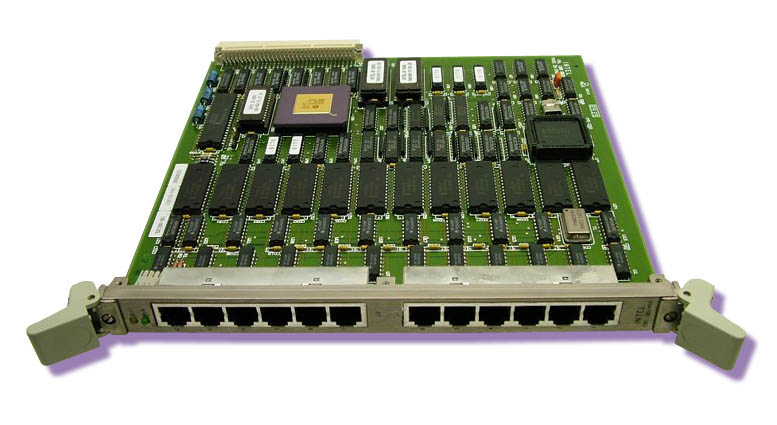

Click on thumbnail for a larger image. Call for price.
