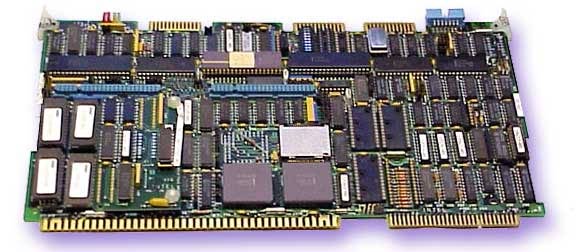

SBC286/10

SKU: INT-SBC286/10

Model: SBC286/10

APX286/10 (80286) microprocessor with 6.0MHz CPU clock

Optional 80287 numeric data processor

iLBX (local bus extension) interface for high-speed memory expansion

Two SBX™ bus interface connectors for I/O expansion

Eight JEDEC 28-pin sites for optional RAM/iRAM/EPROM/E²PROM components

Optional expansion to twelve JEDEC 28-pin sites with an SBC341 28-pin site expansion board

16 level of vectored interrupt control

Centronics-compatible parallel I/O printer interface

Two programmable multiprotocol synchronous/asynchronous serial interfaces; one RS232C the other RS232C or RS422 compatible

Multibus interface for multimaster configurations and system expansion

Alternate Part Number: SBC28610

Click on thumbnail for larger image. Call for price.
