Multibus-International

Model: SBC286/100

Manufactured by: Intel Corporation

80286 CPU operating at 8.0MHz

82258 Advanced DMA (ADMA) Controller device with 4 indepandent DMA channels that support data transfers at speeds up to 8 megabytes per second

Socket for user-installation of 80287 Math Processor

Two 28-pin JEDEC-compatable sockets for JEDEC-standard memory

Two 28-pin EPROM sockets for diagnostic firmware or SDM-286 monitor

Automatic self-check diagnostics on power-up and on command via the Built-in Self Test (BIST)

A 32-bit address and data interface to the iPSB bus, allowing the board to acces up to 4-gigabytes of memory on the bus

A 32-bit data and 24-bit address interface to the iLBX II bus, allowing the board to access up to 16-magabytes of memory

Interconnect space support for identfication of board type, board configuration, and diagnostic handshake and status

Message space support for up to 256 distinct interrupt sources and 256 distinct interrupt destinations

SCSI, Centronics, or parallel I/O interface support via 50-pin connector J3

82530 Serial Communications Controller (SCC) device providing 2 serial I/O interfaces (one RS232C interface via J2 and another RS232C or RS422A/RS449 interface via J1)

iSBX interface supporting either 8-bit or 16-bit iSBX MULTIMODULE boards

Eurocard form factor (8.7 9.2 inches) with 96-pin DIN Connectors on both the iPSB and the iLBX II interfaces

Alternate part number SBC286100

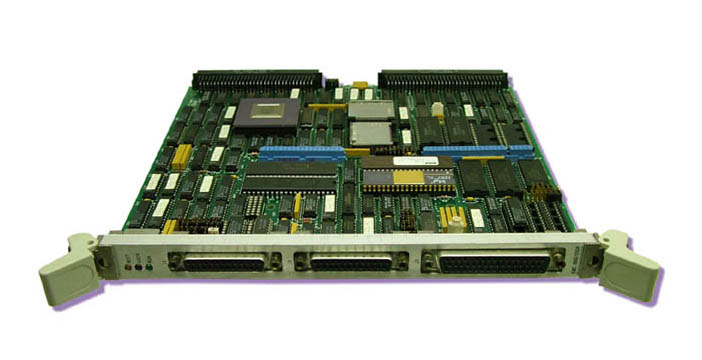

Click on thumbnail for a larger image. Call for price.
