SBC286/10A


SKU: INT-SBC286/10A



Model: SBC286/10A

Manufactured by: Intel Corporation





  • 8MHz 80286 Microprocessor

  • Supports User Installed i287 Numeric Data Processor

  • LBX interface for iLBX Memory Board Expansion

  • 0 Wait-State Synchronous Interface to EX Memory Expansion Boards

  • 8 JEDEC 28-pin sites for optional SRAM/IRAM/EPROM/E2PROM components

  • Optional Expansion to 16 JEDEC 28-Pin Sites with 2 iSBC 341 Boards

  • Maximum On-Boards Memory Capacity 384KB

  • 2 iSBX Bus Interface Connectors for I/O Expansion 16 Levels of Vectored Interrupt Control

  • Centronics-Compatible Parallel I/O Printer Interface

  • 2 Programmable Multiprotocol Synchronous/Asynchronous Serial Interface; 1 RS232C, the other RS232C or RS422/449 Compatible



The SBC286/10A is an 8MHz, 80286 CPU-based single board computer with two SBX connectors for low-cost I/O expansion.  The CPU, system clock, memory sockets, I/O ports and drivers, serial communications interface, priority interrupt logic and programmable timers all reside on the board.  The SBC286/10A supports both the standard iLBX interface and the synchronous high speed interface (EX-series memory boards).



Alternate Part Number: SBC28610A

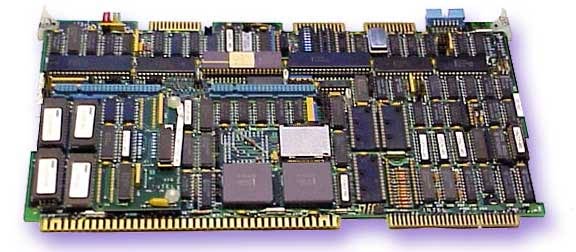

Click on thumbnail for larger image. Call for price.
