SKU: INT-SBC386/1220F


Model: SBC386/1220F

Manufactured by: Intel Corporation



  • 386 microprocessor with 20MHz clock

  • Select 1 – 8MB high-speed DRAM on-board

  • Dual bus architecture

  • Two 32-pin sites for Intel® flash, RAM or EPROM

  • E2PROM, expandable to four sites

  • Local bus extension (iLBX) interface

  • Reconfigurable memory addressing for use in multiprocessing applications

  • Functional superset of SBC 86/XX and 286/1XSingle Board Computers

  • Optional i387™ math processor (M suffix designation) and 82258 ADMA controller


The SBC386/12 products are high performance, high integration Multibus I single board computers.  The SBC386/12 single board computer combines 386 microprocessor performance and the SBC286/12 I/O functionality on a single Multibus I CPU board for 2X or greater performance improvement over the SBC286/12.  Two serial ports are provided via Intel's 8274 Multi-Protocol Serial Controller.  An 82C55A Programmable Peripheral Interface provides support for the parallel line printer interface.  Direct memory access transfers are provided by the 82258 ADMA controller; the DMA support is enhanced to increase flexibility and support synchronous transfers over the serial ports and SBX Bus.


Alternate Part Numbers: SBC/38612F, SBC38612F, SBC38612FxxM (math co-processor)

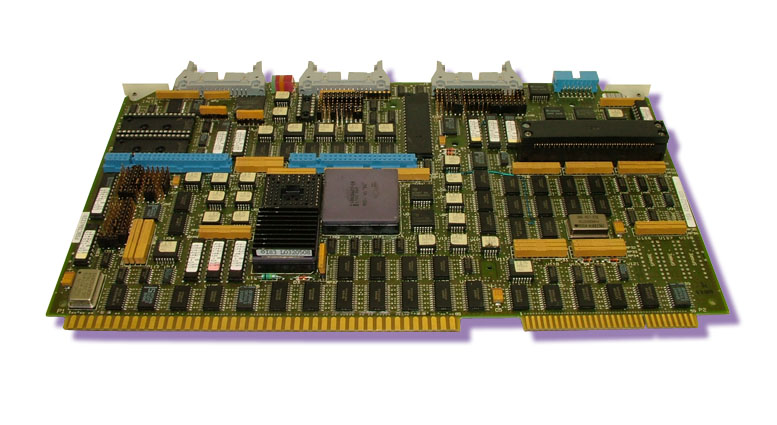

Click on thumbnail for larger image. Call for price.
