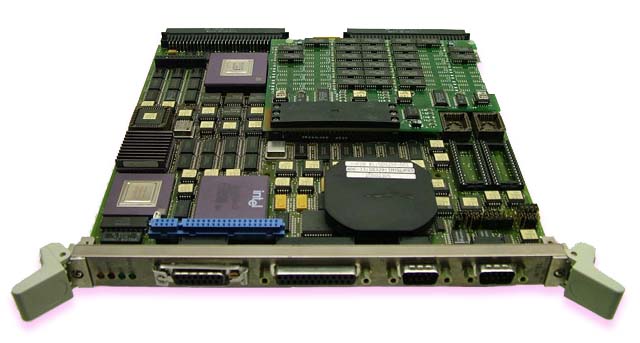

SBC486/133SE


SKU: INT-SBC486/133SE



Model: SBC486/133SE

Manufactured by: Intel Corporation



  • SBC486/133 CPU board

  • 486 CPU operating at 33MHz

  • On-chip FPU and 8KB cache with 0 wait-state

  • 8, 16, or 32MB on-board DRAM with Parity Error Detection, Expandable to 64MB

  • 1 SCSI port

  • On-board Ethernet using Intel® 82596 LAN coprocessor at 33MHz

  • 82258 ADMA operating at 10MHz

  • One SBX Connector for expansion of on-board I/O

  • 2 32-pin JEDEC sites pre-configured with full MSA firmware in two 27020 EPROMs

  • 2 32-pin PLCC sites that support PROMs or Flash Memory Devices

  • 82530 Serial Communications Control and two RS232 Ports

  • Parallel Port – Centronics Compatible

  • SBC CSM/002 Connector On-Board



The high-integration SBC486/133SE accomplish in a single CPU board what previously required three Multibus II boards.  Each board provides a 66MHz Intel 486 DX2 or 33MHz Intel486 microprocessor, SCSI and Ethernet interfaces, and up to 64MB of fast page DRAM.  The SBX bus interface is capable of supporting a single- or double-wide, 8- or 16-bit SBX board.  Two serial ports and one parallel port are also provided.



Alternate Part Number: SBC486133SE



Click on thumbnail for a larger image. Call for price.
