Multibus-International

Model: SBC569

Manufactured by: Intel Corporation

• Digital I/O Controller with up to 4 Microprocessors to share Signal Processing

• 3MHz 8085A Central Control Processor

• 3 Operational Modes

• Stand-alone Digital Controller

• Multibus Master

• Intelligent Slave

• 2KB of Dual Port Static Read/Write Memory

• Sockets for up to 8KB EPROM

• 48 Programmable Parallel I/O Lines with sockets for Interchangeable Line Drivers or Terminators

• 3 Programmable Counters

• 12 Levels of Programmable Interrupt Control

• 3 Sockets for 8041/8741A Universal Peripheral Interface (UPI-41A) for Distributed Digital I/O Processing

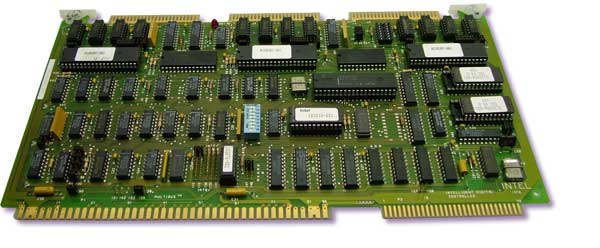

The SBC569 Intelligent Digital controller is complete digital controller with up to four processors.  This 8085A-based single board computer contains sockets for three 8041A/8741A Universal Peripherals Interface chips (UPI-41A).  These devices, which are programmed by the user, may be used to off-load the 8085A processor from time consuming tasks such as pulse counting, event sensing, and parallel or serial digital I/O data formatting with error checking and handshaking.

Click on thumbnail for larger image. Call for price.
