SKU: INT-SBC80/20
Model: SBC80/20
Manufactured by: Intel Corporation
INTEL - SBC80/20
-
8080A CPU used as central processor
-
2K bytes of static read/write memory
-
Sockets for up to 8K bytes of erasable reprogrammable or masked read only memory
-
48 programmable parallel I/O lines with sockets for interchangeable line drivers and terminators
-
Programmable synchronous/asynchronous RS232C compatible serial interface with fully software selectable baud rate generation
-
Full Multibus control logic allowing up to 16 masters to share system bus
-
Two programmable 16-bit BCD and binary timers
-
Eight-level programmable interrupt control
-
Compatible with optional memory and I/O expansion boards
-
Auxiliary power bus, memory protect, and power-fail interrupt control logic provided for battery backup RAM requirements
-
Alternate Part Number: SBC8020-4

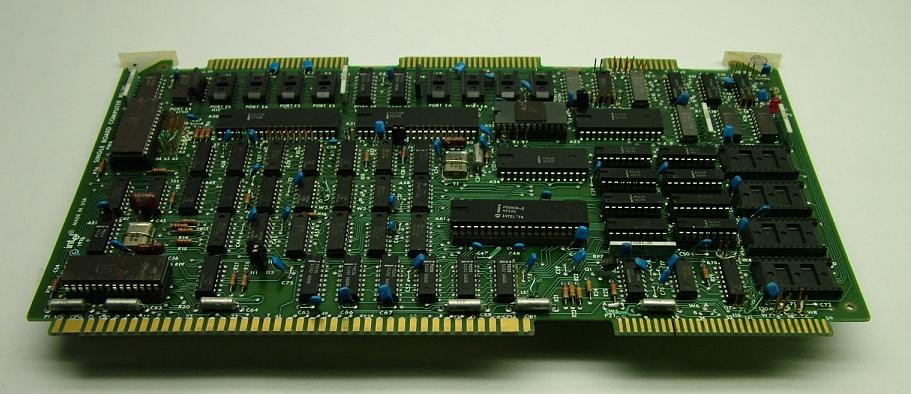

Click on thumbnail for larger image. Call for price.
