SBC80/20-4


SKU: INT-SBC80/20-4



Model: SBC80/20-4

Manufactured by: Intel Corporation



8080A CPU used as central processor

4K bytes of static read/write memory

Sockets for up to 8K bytes of erasable reprogrammable or masked read only memory

48 programmable parallel I/O lines with sockets for interchangeable line drivers and terminators

Programmable synchronous/asynchronous RS232C compatible serial interface with fully software selectable baud rate generation

Full Multibus control logic allowing up to 16 masters to share system bus

Two programmable 16-bit BCD and binary timers

Eight-level programmable interrupt control

Compatible with optional memory and I/O expansion boards

Auxiliary power bus, memory protect, and power-fail interrupt control logic provided for battery backup RAM requirements

Alternate Part Number: SBC8020-4

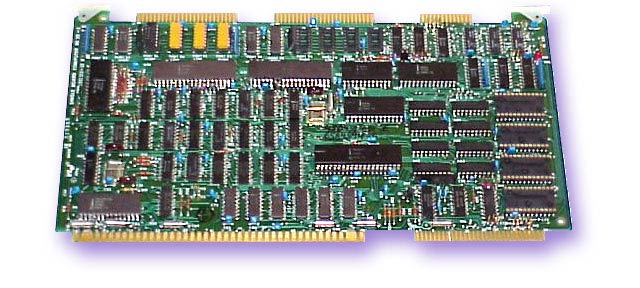

Click on thumbnail for larger image. Call for price.
