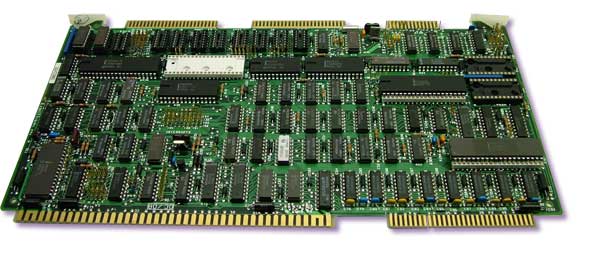

SBC80/30

SKU: INT-SBC80/30

Model: SBC80/30

8085A CPU used as central processing unit

16K bytes of dual port dynamic read/write memory with on-board refresh

Sockets for 8041A/8741A universal peripheral interface and interchangeable line drivers and terminators

24 programmable parallel II/O lines with sockets for interchangeable line drivers and terminators

Programmable synchronous/asynchronous RS232C compatible serial interface with fully software selectable baud rate generation

Full Multibus control logic allowing up to 16 masters to share the system

12 levels of programmable interrupt control

Two programmable 16-bit BCD or binary counters

Auxiliary power bus, memory protect and power-fail interrupt control logic for RAM battery backup

Compatible with optional SBC80 CPU, memory and I/O expansion boards

Alternate Part Number: SBC8030

Click on thumbnail for larger image. Call for price.
