SBX354


SKU: INT-SBX354



Model: SBX354

Manufactured by: Intel Corporation



  • Low Cost Dual Channel Serial Input/Output

  • Programmable Synchronous/Asynchronous Communications - RS232C or RS449/422

  • 4 Jumper Selectable Interrupt Request Sources

  • Low Power Requirements

  • 2 Programmable 16-Bit BCD or Binary Timer/Event Counters

  • Single +5V when configured for RS449/422

  • SBX354 is double channel

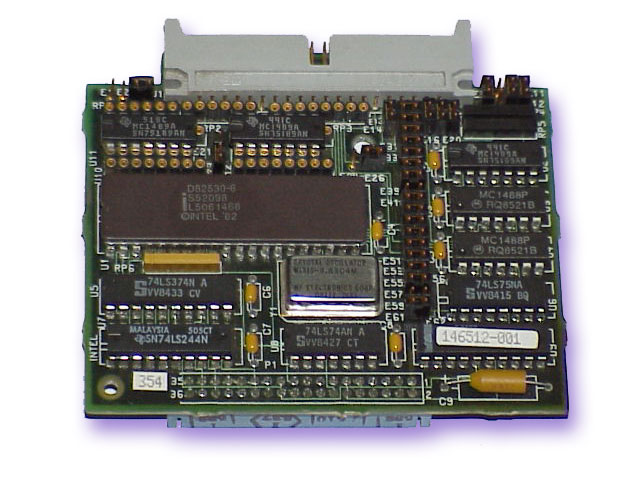

The SBX354 Serial I/O boards provide RS232C or RS449/422 programmable synchronous/asynchronous communications channels with software selectable baud rates.  Two general purpose programmable 16-bit BCD or binary timers/event counters are available to the host board to generate accurate time intervals under software control.  Incremental power dissipation is minimal, requiring only 3.0 watts (assuming RS232C interface).



Click on thumbnail for a larger image. Call for price.
