SKU: INT-MIX420

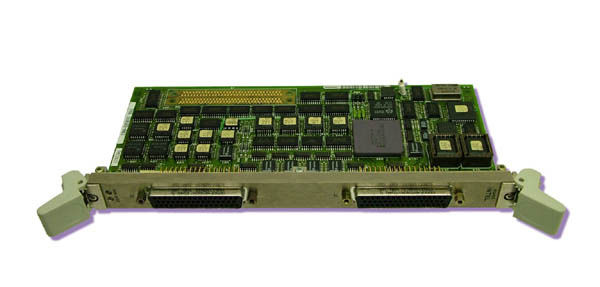

Mosel MIX420
Manfactured by Intel Corporation.
2 CHANNEL SYNCH CONTROL WIDE AREA NETWORK MIX MODULE 64K PERFORMANCE
- 2 GPSYNC channels (configured for DTE)
- 2 individual 50-pin, shielded, connectors for each serial channel
- a 256K bit/s transfer rate sustainable on all channels with one MIX 420 module installed; a 64K bit/s transfer rate sustainable on all channels by stacking three 420 modules
- an 82C54 programmable interval timer (PIT) that provided two event counters/timers and one supply clock for the two
- a programmable flag byte register providing module reset
- two 32-pin, JEDEC sockets for 128 K-byte (27020) EPROM devices
- preconfigured firmware in two 27020 EPROM devices (which can be added to the module) containing the module's built-in self-tests (BISTs)
- a single EEPROM device containing all of the module's interconnect record information
Click on thumbnail for larger image.
Call for price.
