RCB44/20

SKU: INT-RCB44/20



Model: RCB44/20
Manufactured by: Intel Corporation



  • Distributed Intelligence via BITBUS Serial Bus

  • 16 Single-ended or 8 Differential Input Channels

  • 2 Output Channels

  • +10V Range or 4-20 mA Current Loop

  • 8044 8-bit Microcontroller at 12MHz

  • 12-bit Analog Resolution

  • Up to 20KHz Acquisition Rate (50 us)

  • Software Programmable Gain 1, 10, 100, 500

  • Two 28-pin JEDEC Memory Sites

  • I/O Expansion via SBX Connector

    • Eurocard, DIN Connector
    • Standard Industrial Package





The RCB44/20A BITBUS Analog I/O Controller is a fully programmable analog I/O subsystem on a single Eurocard formfactor board.  The resident 8044 microcontroller operating at 12MHz provides the ability to execute data acquisition and control routines remote from the host computer.  Real-time capability is made possible by the DCX51 Distributed Control Executive, resident in the 8044 microcontroller.  Distribution of real-time control is implemented by the BITBUS Serial Bus protocol, which is also managed integrally by the 8044.

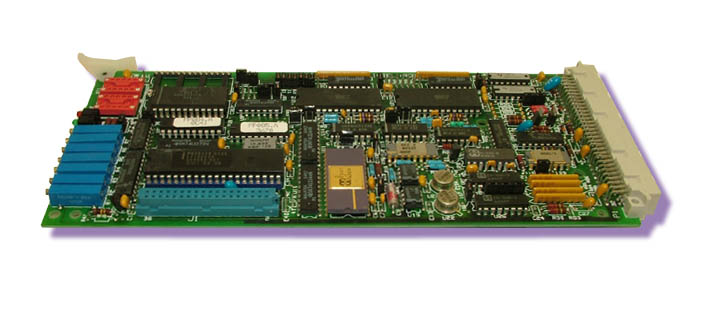

Click on thumbnail for larger image.
Call for price
