SBC604


SKU: INT-SBC604



Model: SBC604

Manufactured by: Intel Corporation



  • Interconnects and Houses up to 4 Multibus I Boards per Cardcage

  • Strong Cardcage Structure Helps Protect Installed Boards from Warping and Physical Damage

  • Compatible with 3.5 RETMA Rack Mount Increments

  • Interleaved Grounds on Backplane Minimize Noise and Crosstalk

  • Up to 3 CPU Boards per System for Multiprocessing Applications



Intel Part Number: 144080-xxx

Intel Product Code: SBC604

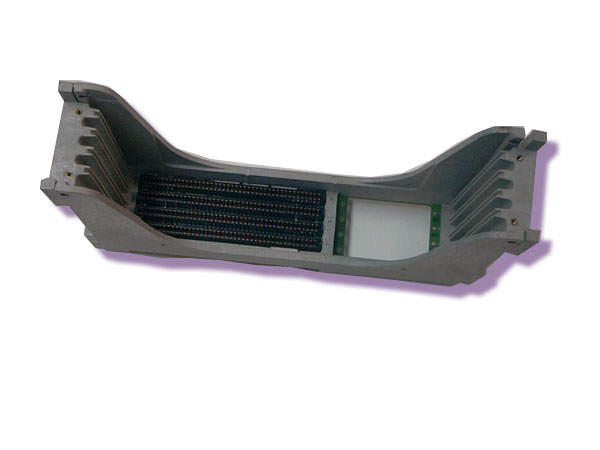

The SBC604 Modular Cardcage Assembly unit provides low-cost, off-the-shelf housing for OEM products using two or more Multibus I boards.  Each unit houses up to four boards.  The SBC604 Cardcage Assembly contains a male backplane PC edge connector and bus signal termination circuits, plus power supply connectors.  It is suitable for applications requiring a signal unit.  A single unit may be packaged in a 3.5 inch RETMA rack enclosure.  The unit is mountable in any of three planes.



This assembly consists of Intel Part Number 144075 (Termination Backplane) and Intel Part Number 3003097 Cage, both of which may be found elsewhere on this website.



Click on thumbnail for larger image. Call for price.
