Multibus-International

Model: SBC608/SBC618

Manufactured by: Intel Corporation

• Houses up to Eight Multibus I SBC Boards in an Aluminum Package

• Board-to-Board Clearance for SBC Boards on All Slots

• Board-to-Board Clearance for SBX Boards on 2 Slots

• Parallel Priority Circuitry for up to 8 SBC Boards

• Enhance Bus Noise Immunity for High Speed Systems

• Plug on SBC 618 Unit for up to 16 Board Systems

• NEMA-Type Backwall or 19-Inch Rack Mount Hardware Included

• Signal Line Termination Circuitry on SBC608 Cardcage

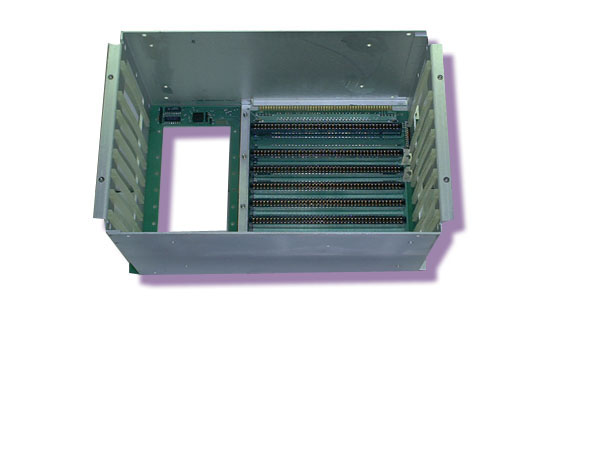

Intel's SBC608/618 Cardcages are matched to the latest generation of SBC/SBX boards which mount in the Multibus I system bus.  Key features include board clearance, parallel priority circuitry, enhanced backplane noise immunity, and precision fit card guides.

The SBC608 Cardcage is the base unit housing up to eight SBC boards and their multimodule boards.  Additionally this base unit includes mounting hardware and fan mounting bracketry.  The SBC618 in the expansion unit, providing eight additional SBC board slots to the SBC 608 Card cage for a total of sixteen board slots which can be NEMA-type backwall or 19-inch rack mounted.  This is accomplished with the mounting hardware of the SBC608 Cardcage.

Click on thumbnail for larger image. Call for price.
