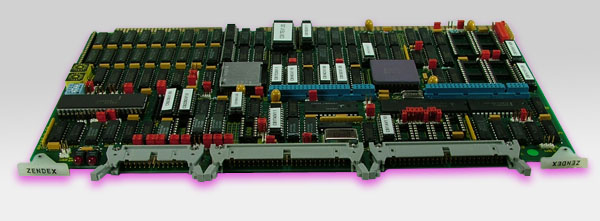

 SKU: ZX-186/30 ZX-186/30
Four sockets are available to support either 2732, 2764, 27128, 27256 or 27512 devices. The ZX-186/30 features a user selectable 8251A or 8274 serial controller. The 8251A may be RS-232 or RS-422. The 8274 may be 2/RS-232 and 1/RS-422 and will support HDLC/SDLC protocols. The baud rate is software selectable with a maximum rate of 19.2K baud asynchronous on channel 1 and a maximum rate of 800K baud synchronous on channel 2. Channel 1 is standard RS-232 compatible. Sockets provided for line drivers and terminators enable the user to choose the proper devices for each application. The 80186 CPU supports two independent, high speed, DMA channels. These channels may be configured for either the 2 SBX connectors or the high speed serial channel 2. Specifications PROCESSOR: 80186
|
|||
 |
